Product description
Precautions for products
1. Confirm whether the product is compatible with your system,
2. Confirm the size of the product to see if it can cover the traces left on the wall of the old thermostat.
3. If you encounter installation and troubleshooting problems, please feel free to contact, we will repley you in 24 hours.
This is a 24VAC conventional single-stage system non-programmable thermostat for home
Heagstat specializes in the design and manufacturing of professional grade products that improve the comfort of a home and simplify the installation. This H701 non-programmable digital thermostat has many convenient features. Some of its features include: backlit display easy to read, simple operation with slide switches selecting heat or cool mode operating the fan. This thermostat is compatible with single-stage heating/cooling systems, heating, cooling.
Specifications:
Single Stage 1 Heat, 1 CoolNon-programmablelarge LCD display with white backlightFan switch with ON and AUTO functionsLow battery indicatorElectric or Gas configurableSeparate B & O terminalsSeparate heating and cooling swing (cycle rate) adjustments
Room temperature calibration adjustment 5 minute compressor delay protection (selectable on or off) Display options: Fahrenheit or Celsius temperature displayProduct Dimensions: 0.98″D x 4.72″W x 3.86″H

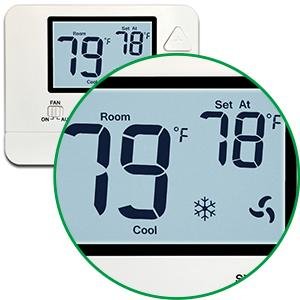

Easy to see and read
3 Inches large LCD displayOne-button wake-up white backlight lightsSuitable for Middle-Aged and Elderly People.
Easy to use and install

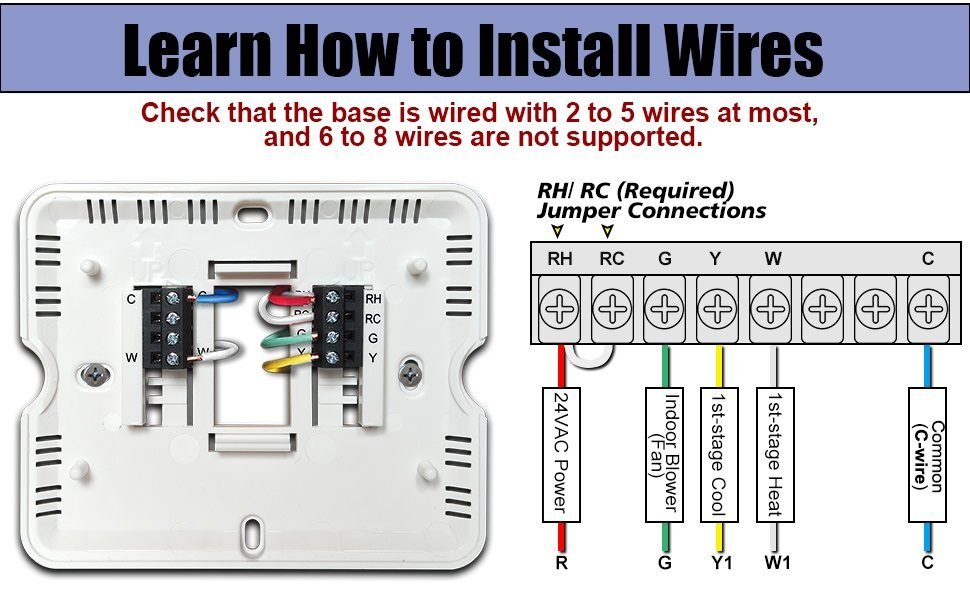

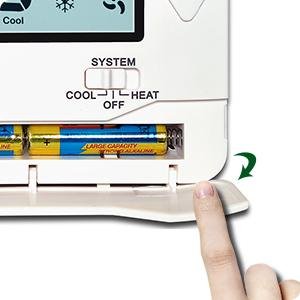

Easy wire coded terminal blocksTerminal Designations RH, RC, G, Y, C, O, B, WUniversal sub-base, mounts on wall or junction boxEasy access battery compartmentDual-powered (AAA battery and/or hardwire 24VAC power)
Notice：Should thoroughly examine the installation and wiring instructions depicted in the images before. ( Note that the base can only be attached with a maximum of 2 to 5 wires, and connections with 6 to 8 wires are not suitable.)

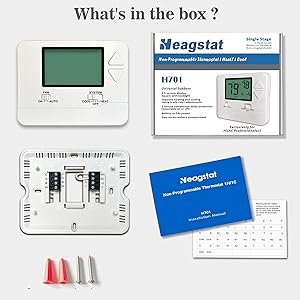

What’s in the box?
Heagstat H701 thermostat and base (Jumper wire connected)Two screws and anchorsInstallation manualCable label

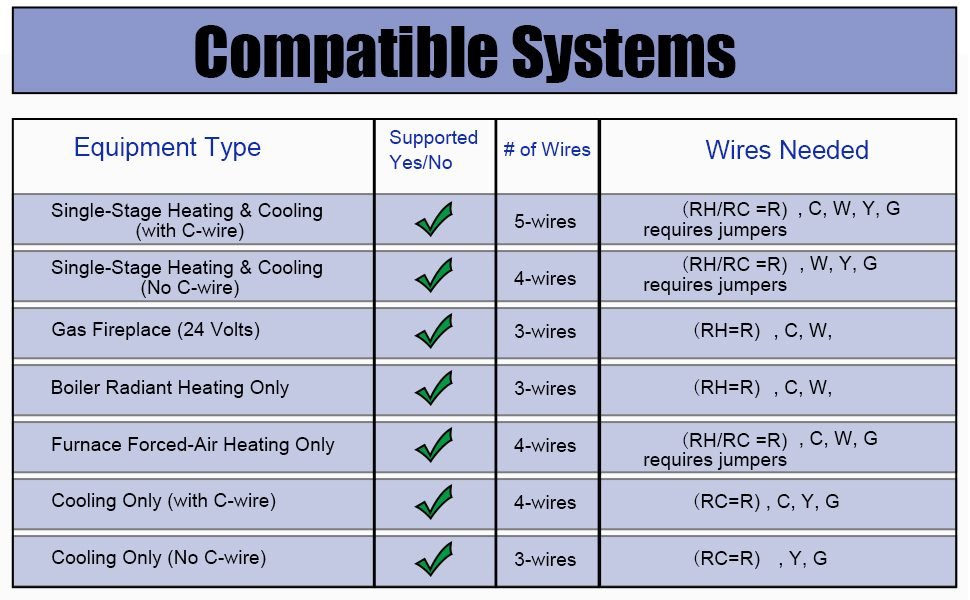

✅ 【Precise Fit for Single-Stage Systems】Designed exclusively for home single-stage heating (gas/oil/electric furnaces), ventilation, and air conditioning systems, supporting 1 Heat/1 Cool configurations; Only compatible with existing bases with 2 to 5 wires, please check the number of wires in advance to ensure compatibility

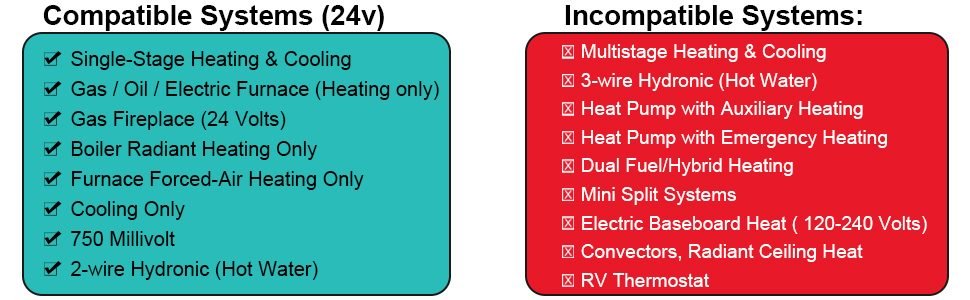

❌ 【Clearly Incompatible Systems】Not suitable for multi-stage HVAC systems (2H/2C, 3H/2C), HVAC heat pumps systems(2H/1C, 2H/2C), PTAC units, 3-wire hydronic (hot water) heating systems, dual fuel/hybrid heating systems; Does not support 120-240V line voltage systems, mini-split heat pump air conditioners, RV air conditioners (Mach/Roughneck series)
⚠️【Dual Power Supply, No C-Wire Needed】Supports 24VAC hardwiring or 2 AAA batteries power supply; No common wire (C-wire) required for most standard systems, making retrofits in older homes more convenient
✅ 【Clear & Easy-to-Read Design】Equipped with a large white backlit display with clear, prominent numbers, especially suitable for the elderly to view; Room temperature display range: 41°F to 95°F, Temperature control range: 44°F to 90°F
✅ 【Precise Temperature Control & Protection】±1°F temperature control accuracy ensures a comfortable experience, supporting 0.2°F to 2°F heat/cool swing adjustment; 5-minute compressor delay protection (selectable ON/OFF) with low battery indicator function
⚠️ Pre-Purchase Verification (Critical for Renovations) – Before ordering, confirm your HVAC system is a 1H/1C single-stage setup (non-heat pump). Review all wiring diagrams and installation guidelines. Purchase only if your system meets all requirements to avoid compatibility issues.
✅ 【Reliable After-Sales Guarantee】Enjoy a 2-year worry-free warranty, and 24/7 professional customer service team is ready to provide support for installation, wiring, and troubleshooting at any time.
